Agitators and mixers, sized for your process

Designed by FMT engineers for your vessel, product and duty, built in our own works in Pune, and shipped to plants in India, the Gulf, Africa and South-East Asia.

Budget price in one working day

Tank size and product are enough to start.

12+years of mixing experience
200+projects executed in India, the Gulf, Africa and South-East Asia
ISO 90012015 quality system, certificate E2023126448
US$export quotes, FOB Nhava Sheva (JNPT) or CIF to your port

What we build

Agitators, mixers, reactors, vessels and complete blending plants, each designed from your process data and made in our own works. Agitators from 0.37 to 300 kW, for vessels up to 500 KL, in SS304, SS316/316L and MS, and Hastelloy on request.

Top entry agitators with geared motors and bearing housings, assembled at the FMT works in Pune

Agitators

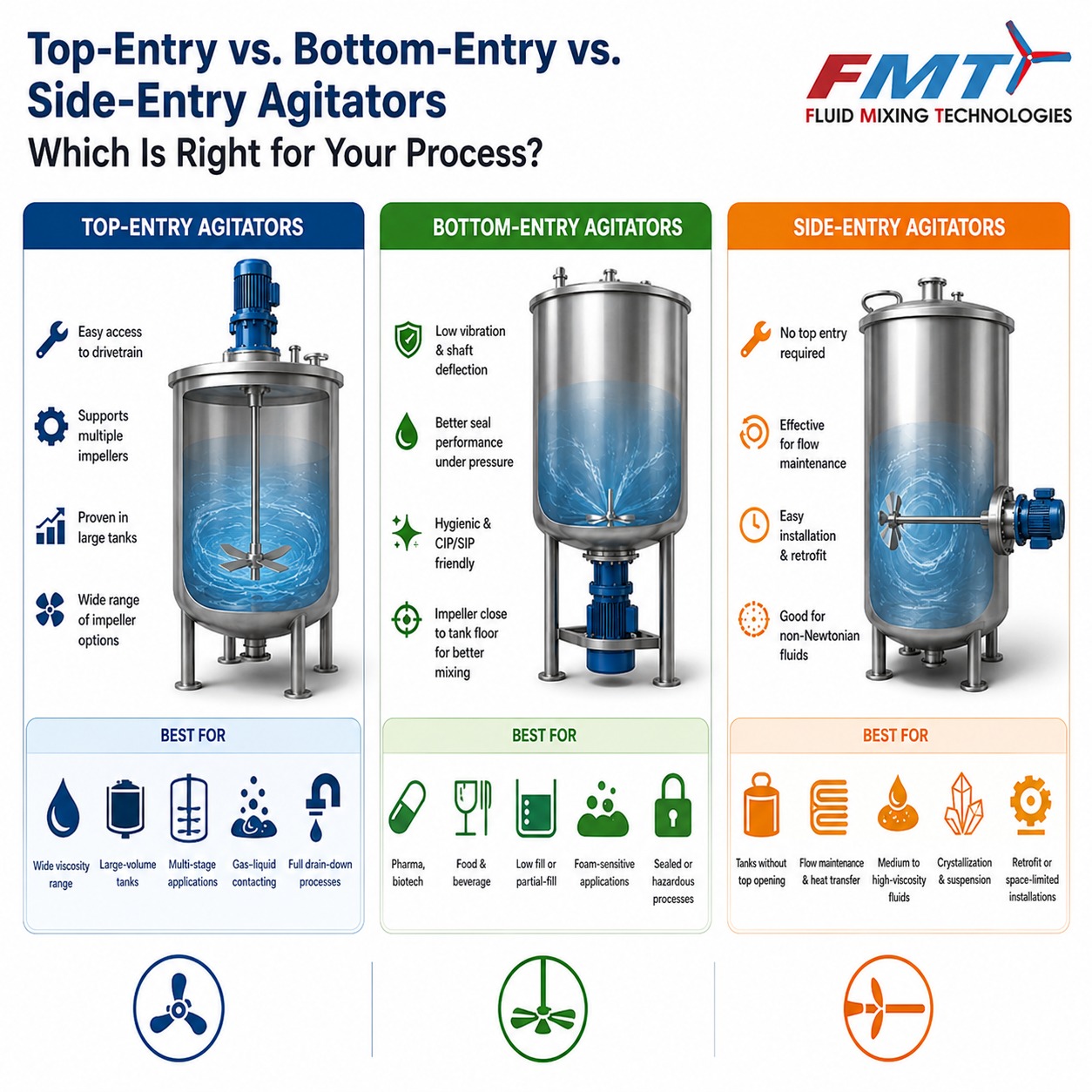

Top, side and bottom entry agitators, IBC mixers and magnetic drives, each sized for its vessel, product and duty.

Send vessel details

All 24 products

Every duty needs a different impeller

Choose what your agitator must do. The drawing shows the impeller we would start from and how it moves the liquid in your vessel.

What must your agitator do?

Low-viscosity liquids blend fastest with an axial hydrofoil that turns the whole batch over with little power. Top entry agitators

Built in Pune, installed abroad

FMT equipment runs in plants in India, the Gulf, Africa and South-East Asia. We quote in US dollars, pack for sea freight and supply the documents your project needs.

FMT 20 KL stainless steel tanks and two reactors, installed at a process plant abroad

Overseas process plant

FMT 20 KL stainless steel tanks and two reactors, supplied from Pune to a process plant abroad.

  • FOB Nhava Sheva (JNPT) or CIF to your port
  • An FMT engineer replies within one working day, on email or WhatsApp
  • Video call with the engineer who designs your equipment

All projects

Reactor agitator drive with lantern, bearing housing and mechanical seal on a reactor top

Replacing an agitator from another maker?

Send a photo of the nameplate, the drive and the tank top. We supply a complete agitator that fits your existing nozzle and mounting, or just the part that wore out: impeller, shaft, seal or gearbox.

  • Any make, any age, with or without the old drawings
  • Upgrades when the process has changed: more power, a different impeller, a better seal
  • Impellers, shafts and seals supplied on their own

How we size an agitator

An agitator that is too small does not mix; one that is too big wastes power and wears out its seal. We size each one from the process data, and design the machine for the loads it will see.

Process data

Tank, volume and levels, product properties, pressure and temperature, and what the agitator must achieve.

Hydraulic design

Impeller type, diameter, number and position; speed and absorbed power for the hardest point of the batch.

Mechanical design

Shaft checked for stress, deflection and critical speed; bearings, seal, drive and mounting sized for the loads.

Offer with drawings

A techno-commercial offer with the datasheet and general arrangement drawing, so you can check the fit before you order.

Manufacture and inspection

Machining and fabrication in our Pune units, inspection to the agreed plan and a run test before dispatch.

Delivery and support

Packing for road or sea freight, installation drawings and manual, and spares matched to the drawings.

Drawings with the offer

Your engineers see the agitator on paper before you order: its height above the mounting face, the nozzle and flange it needs, and where the impellers sit in your tank. After the order, the final general arrangement and datasheet come to you for approval, and delivery is counted from that approval.

Indicative general arrangement of a top entry agitator in a 3 KL tank, plan, elevation and notes, as sent with an FMT offer
With the offerIndicative general arrangement: plan and elevation of the agitator in your tank, with notes on the drive height, impellers, shaft, seal, weight and mounting flange.
General arrangement drawing of a 5 KL jacketed mixing vessel and its top entry agitator, issued for approval (client details removed)
For approval after the orderFinal general arrangement of a 5 KL jacketed mixing vessel and its agitator: nozzle schedule, materials, weld details and design data. Client details removed.
Fabricators at work in the FMT fabrication hall, with vessel shells, dished ends and the overhead crane

See our works before you order

FMT machines shafts and hubs, fabricates impellers and vessels, and assembles and run-tests agitators in its own units at Chikhali and Talawade, Pune. Visit us, or book a video call and an engineer walks you through the shop and your design.

Trusted by process plants and EPC companies

A selection of the companies that have chosen FMT agitators and mixing equipment.

Coca-Cola
Berger Paints
Marico
Thermax
ICA Pidilite
Hikal
KPIT
IndianOil Total
Toyotsu Rare Earths India
HRS Heat Exchangers
Ajmal
Drools
DD Enterprises
Dilogue
Energy and Environment Co.
Eurotek
KnitCon Solutions
Topse Turnkey Process Solutions
Biovet
Sar Senapati Santaji Ghorpade Sugar Factory
Tridiagonal Solutions
Gargi Hüttenes-Albertus
Siegwerk India
KX2 Development
K D Aher Building Systems
Taural India
Finepac Structures

Common questions

More answers on the FAQ page, or ask us directly: +91 73852 62875.

Do you make standard or custom agitators?
Every FMT agitator is designed for its vessel, product and duty. We use standard, proven components (drives, bearings, seals and impeller types), but the impeller size and position, speed, power, shaft and mounting are worked out for each order.
What information do you need to quote?
The tank size and what the agitator must do is enough for a budget price. For a firm offer we also need the working volume and liquid levels, the product (density, viscosity, solids) and the operating pressure and temperature. A vessel drawing or even a photo of the tank helps; we ask for anything else we need.
Do you supply outside India?
Yes. FMT equipment works in plants in India, the Gulf, Africa and South-East Asia. We pack for sea freight and supply the documents export projects need. See for export buyers.
Can you replace an agitator made by another company?
Yes. Send a photo of the nameplate, the drive and the tank top, with the tank size and what the agitator does. We supply a complete replacement that fits the existing nozzle or mounting, or just the impeller, shaft or seal. See spares and replacement.
Can we see your works before ordering?
Yes. Book a visit to our works in Pune, or a video call where an engineer walks you through the shop and your design.

Send us your vessel. We size the agitator.

Tank size, product and what the agitator has to do is enough to start. Send a drawing, a datasheet or just a photo of the tank, and we reply with a recommended design and price, or a budget price first if you need one.

An FMT engineer replies within one working day.
